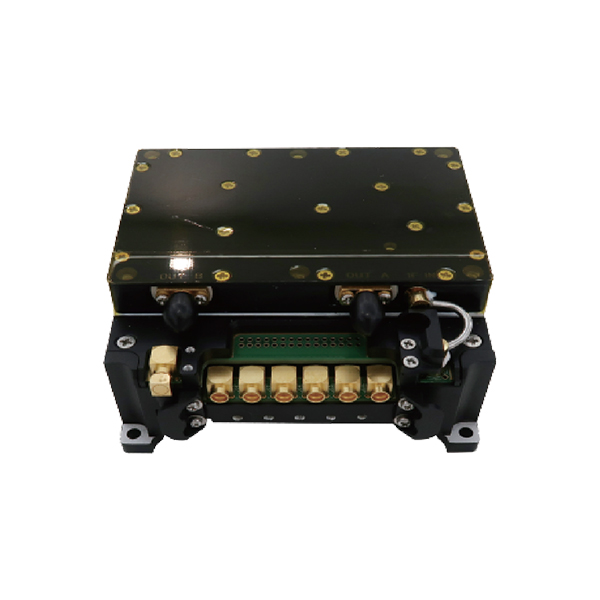

Measurement and control data transmission integrated machine

The product is based on the concept of high reliability, miniaturization, and integration, adopting an integrated design of mechanical, electrical, and thermal components, integrating measurement and control, high-speed injection, and data transmission functions.

Measurement and Control Data Transmission Communication Machine (AB)

The X-band transmitter adopts an integrated design of machine, electricity, and heat, integrating measurement and control, high-speed injection, and data transmission functions. Measurement and control adopt spread spectrum/unified carrier system

Measurement and Control Communication Machine (AB)

S-band transporter is a channel for transmitting and receiving control commands and status information between satellites and ground measurement and control stations. It is mainly responsible for the transmission of telemetry and remote control signals between satellites and ground measurement and control stations

High speed data transmission

Adopting a highly reliable anti radiation platform design, the product features ultra small size, ultra-low power consumption, and ultra light weight. The in orbit reliable working time can be selected from 3 years/5 years/7 years.

Medium low speed transmission

The X-band low-speed data transmitter is mainly responsible for storing the obtained business information and transmitting it to the ground station through the data transmission channel during transit.

Integrated electronic board

The satellite integrated electronic board integrates multiple functional circuits to achieve important tasks such as satellite control, data processing, and communication. It includes different functional modules such as processor, memory, communication interface, power management circuit, etc.
