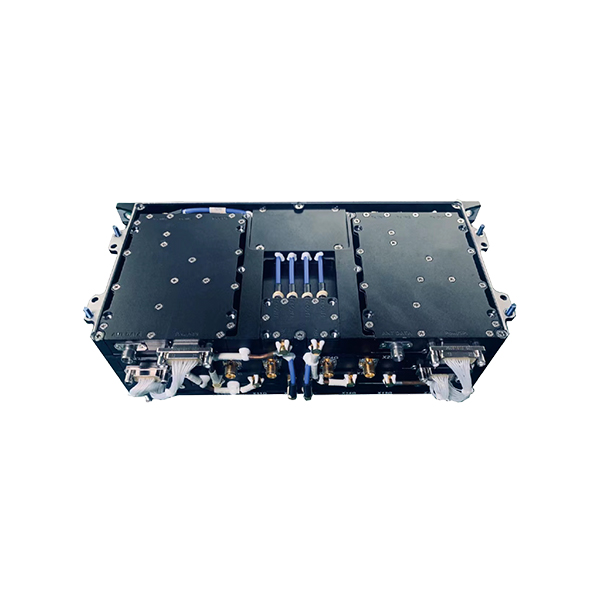

Measurement and Control Data Transmission Communication Machine (AB)

Measurement and Control Data Transmission Communication Machine (AB)
The X-band transmitter adopts an integrated design of machine, electricity, and heat, integrating measurement and control, high-speed injection, and data transmission functions. Measurement and control adopt spread spectrum/unified carrier system, with high technological maturity; The upper injection channel can perform software in orbit reconstruction; The data transmission is equipped with solid-state storage, which can meet various application scenarios such as real-time business data download and playback download.

Details:
● Function: measurement and control, data transmission, annotation
● Working temperature: -25 ℃~+60 ℃
● Storage: -40 ℃~+85 ℃
● Receiving sensitivity: superior to -115dBm@2000bps
● Upstream remote control code rate: 1-32kbps
● Downward telemetry code rate: 1~64Kbps
● Doppler rate of change: ≤ 15kHz/s
● Capture range: ± 300kHz
Modulation method: uplink (remote control): BPSK
Downward (telemetry): BPSK/QPSK
Downward (data transmission): QPSK
● Data transmission power: ≤ 32dBm
● Data transmission rate: 0.1Mbps~200Mbps
● Local fixed storage capacity: 32GB
● Radiation resistance: TID>; 15Krad(Si）SEFI> 3/year SEL> 75MeV-cm2/mg
