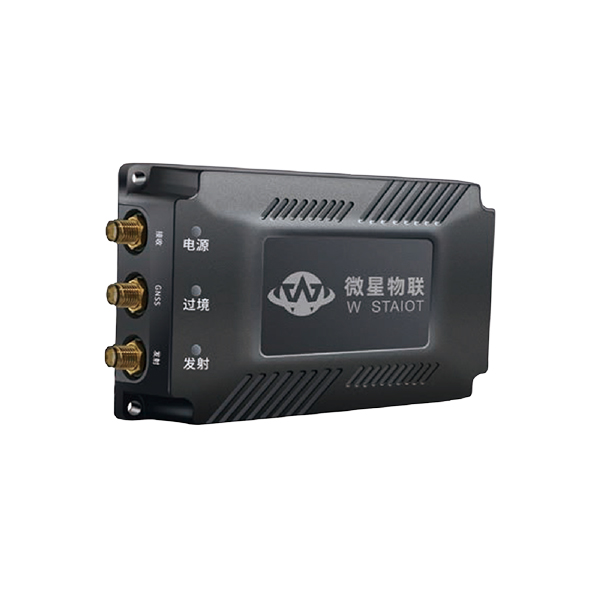

WS-A101 Satellite Single Mode Gateway

WS-A101 Satellite single-mode edge computing gateway:
The WS-A101 satellite single-mode gateway is a high-performance, low-power wireless communication terminal for satellite IoT, which can communicate with DCS payloads of in orbit satellites. The product has built-in satellite transceiver RF module and digital baseband module, with satellite transit orbit prediction and low-power management functions.

Details:
● Power supply voltage: 9-15V, typical 12V
● Power consumption: Instantaneous power consumption during transmission ≤ 2.8W
Receiving instantaneous power consumption ≤ 2.8W
Standby sleep power consumption<0.002W
● Support SPT protocol
● Supports Modbus protocol
● Working temperature: -30~65 ℃
● Extended working temperature: -40~85 ℃
● Storage temperature: -40~90 ℃
● Protection level: IP54
● Mechanical dimensions: ≤ 118mm × 68mm × 26mm (excluding cables)
● Weight: ≤ 200g
● Service life: ≤ 5 years
